- COMPATIBILITY: Specially designed for BBS01 BBSHD 8FUN mid drive motor e-bikes, ensuring perfect integration with your system

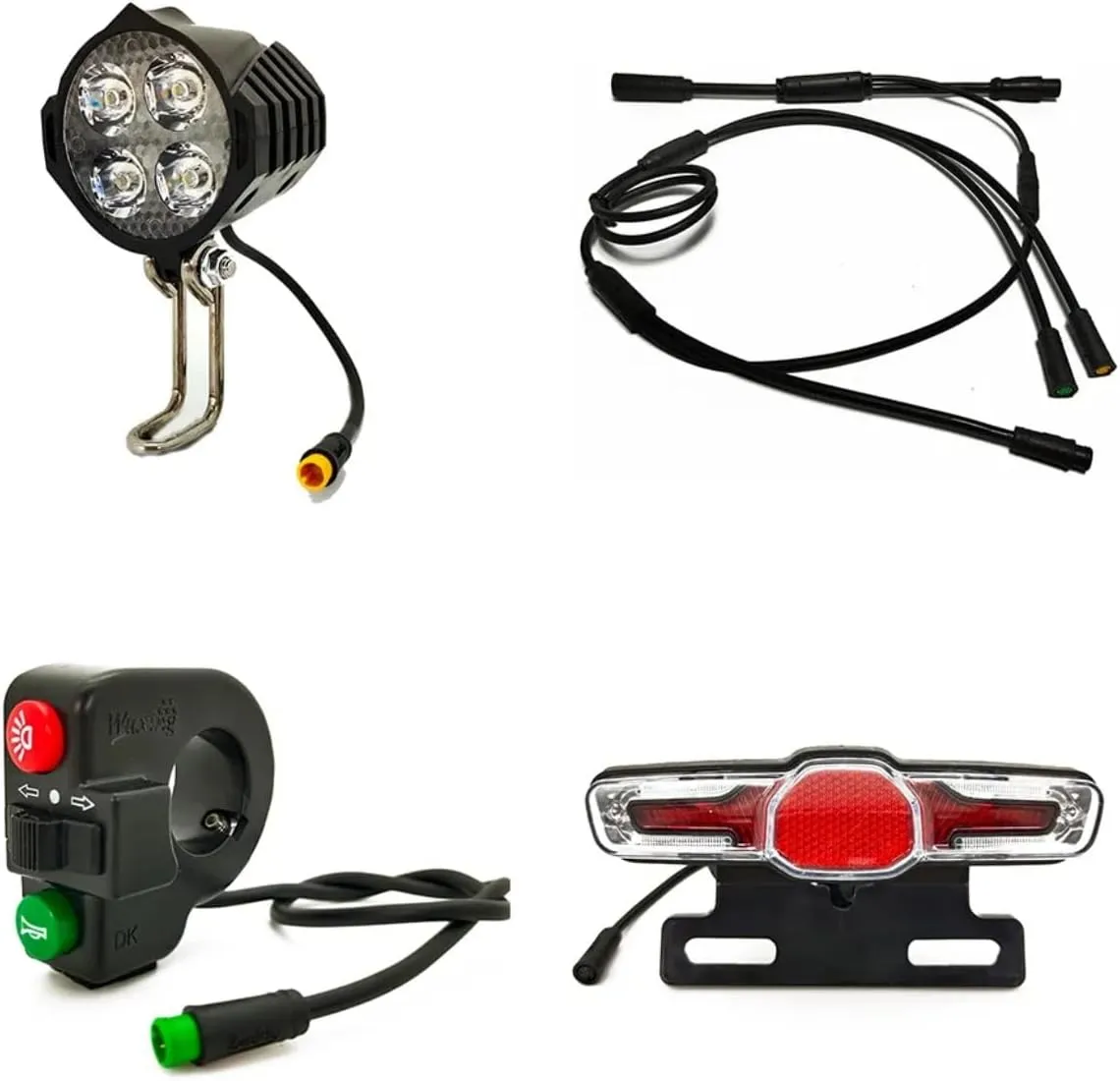

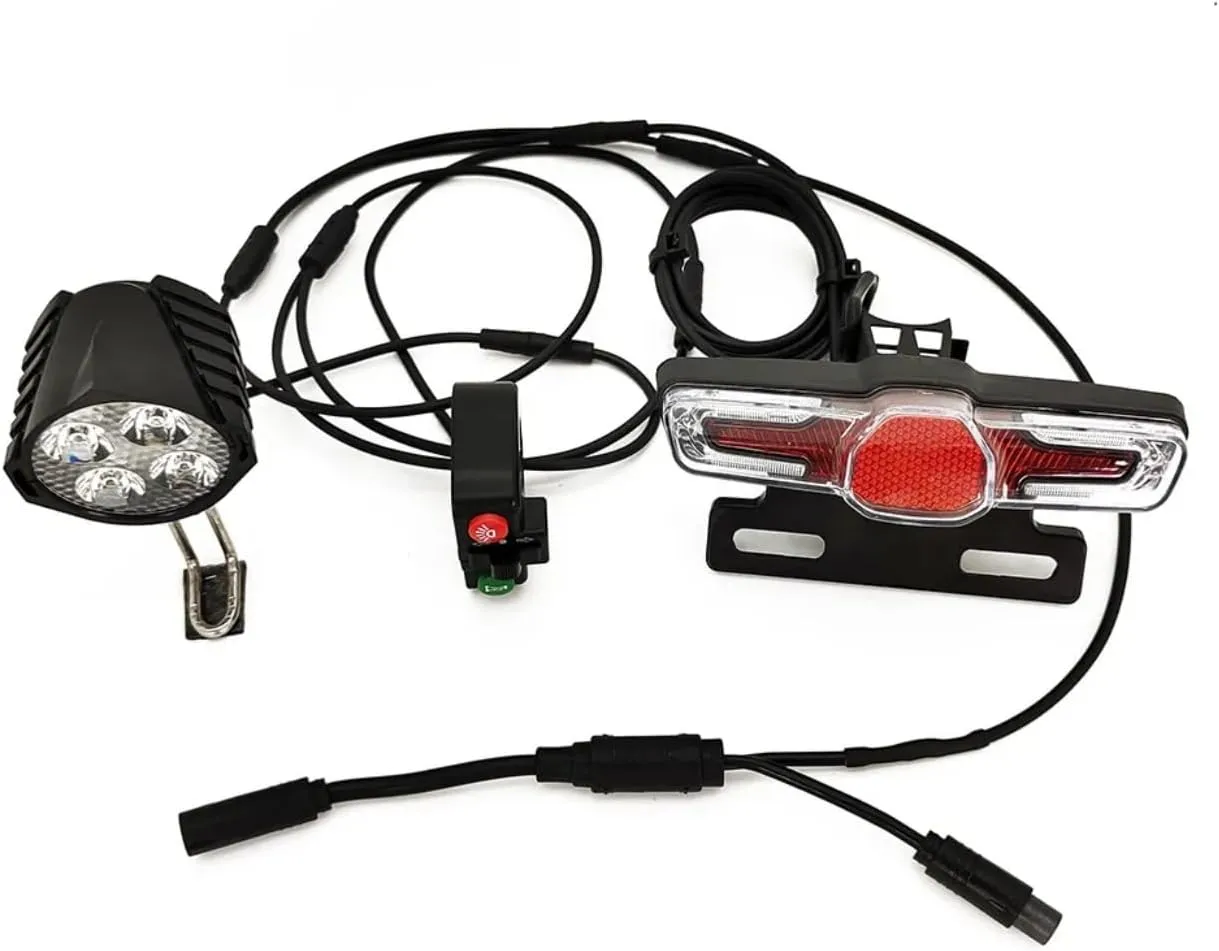

- INTEGRATED DESIGN: Complete light set featuring both front and rear lights with turn signals and brake light functionality
- WATERPROOF CONSTRUCTION: Fully sealed cable connections and housing protect against water and moisture for reliable performance
- SIGNAL FEATURES: Includes clear indicators for turning and braking, enhancing visibility and safety during rides
- INSTALLATION: Pre-wired setup with integrated cables for straightforward connection to your e-bike's electrical system
Compatibility:
This light set conversion kit is specifically designed for 8FUN BBS01, BBS02, and BBSHD series mid-drive motors.
Electrical parameters:
Product Model: Front Light LS-021
Power voltage: 24~48V
Lamp current/power: 59mA/2.8W
Luminous flux [LM]: 180~200LM
Speaker current/power: 44mA/2.1W
Speaker volume: 80~100dB
Product appearance (50*62*73)
Taillight parameters:
Code: DZ0275-WD05D
Net weight of taillight: 120g
Shell material: plastic
Applicable voltage range: 24-80V
Power: 1.5W
Number of light sources: 14
Luminous flux: 15LM
Product size: 132*65*40mm
Switch parameters:
Code: DZ0002
1. Net weight of switch: 92g
2. Shell material: plastic
Product size: 26*53*61mm
Waterproof cable zice:
Front light: 25CM bus 16CM
Switch: 25CM bus 33CM
The bus contains a large part of the separation: 41CM
Tail light: bus 14.5CM 115CM
Power supply: 19.5CM bus 39CM
Total length 24CM, taillight power supply part 25CM
Single package size: 23*12.5*8.5CM
Net weight is about 380g
Gross weight about 450g
With high brightness, energy efficiency, and a durable design, it ensures optimal visibility and safety during your rides. The easy-to-install kit includes front and rear lights, turn signals, and brake lights, making it a comprehensive solution for all your lighting needs.
Note: Ensure compatibility with your motor model before purchasing.
