- ✪ 1X8 SC/UPC Optical Fiber PLC Single Mode Splitter.Uniform power splitting with strong transmission stability.Suitable for Home Wiring,engineering projects, corporate companies, fiber optic LAN.
- ✪ 1x8 PLC Fiber optical splitter the interface type is SC/UPC, fast and practical.Low insertion loss and low back reflection, low dependent loss.Low PDL and High reliabilityHigh return loss and Good repeatability.
- ✪ Flexible Installation:The optic patch cable with adjustable clips and removable protective cover that protect the fibers during installation ; Number position labels on the cable provide quick identification when installing, testing and troubleshooting.
- ✪ Compact design and reliable connection:The optical fiber cable comes already installed in a ABS plastic hood case .For a wire holder for fixing cable and avoiding twisting.All-fiber structure, good environmental stability.
- ✪ Package Content:1*1x8 PLC Fiber optical splitter

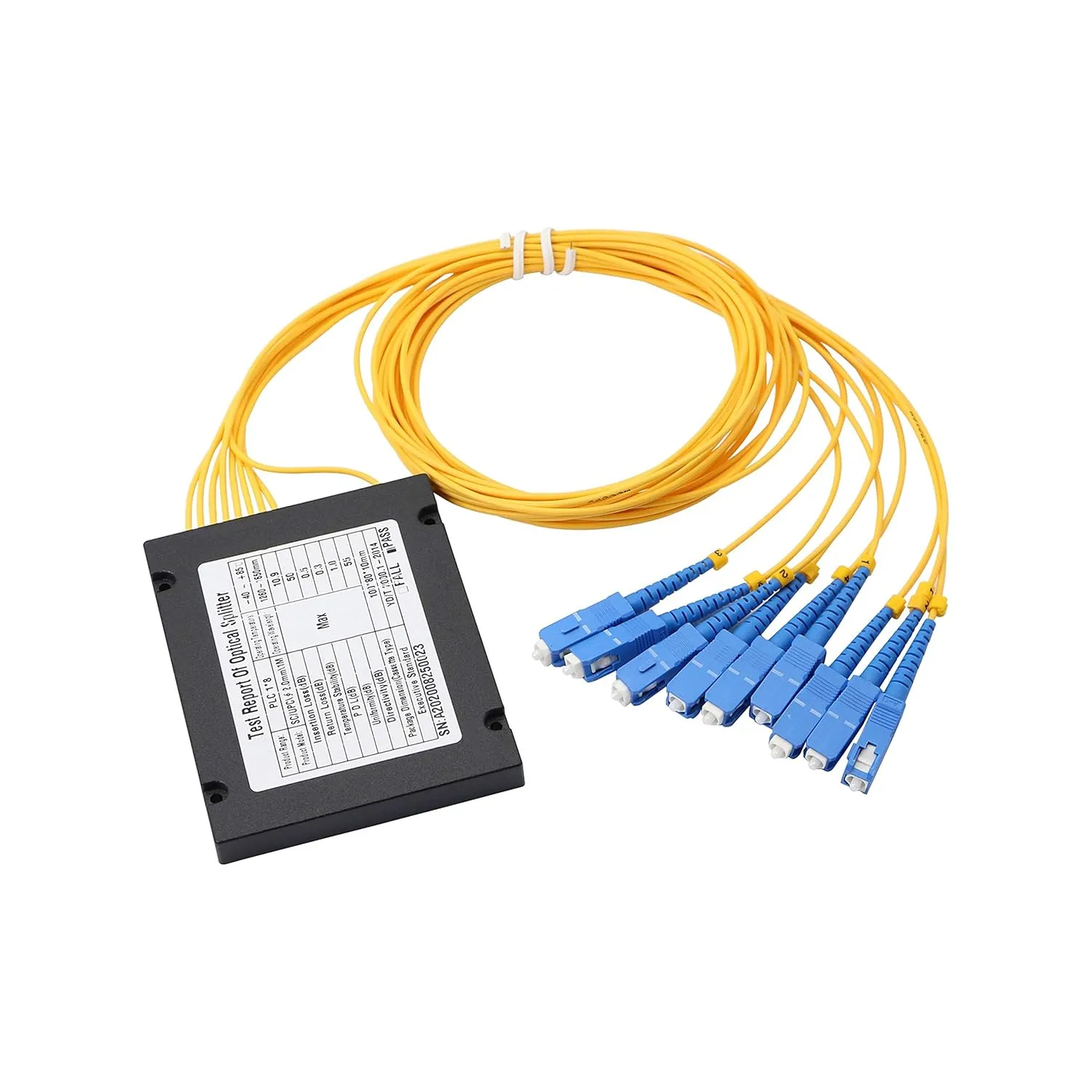

1x8 PLC Optical Splitter Cassette, Planar Waveguide Single Mode Optical Splitter for Home Wiring Engineering
Specification:
Item Type: PLC Optical Splitter Cassette
Standard: 1X8
Type: PLC
Interface Type: SC/UPC
Test wavelength：1310nm
Working Wavelength: 1260-1650nm
Spectral uniformity: 0.8dB
Return Loss: 55dB
Directional:55dB
Dependent Loss: 0.5dB
Temperature stability：0.6dB
Insertion Loss: 10.5dB
Polarization dependent loss:0.3dB
Test Temperature: -40 to 85 ° C
Application:
Home wiring
Project
Company
Fiber-optic local area
Package List:
1 x PLC Fiber Splitter
- Package Dimensions : 9.09 x 6.02 x 0.87 inches; 3.53 ounces
- Date First Available : December 20, 2020
- Manufacturer : LEIHONG
