- Power Output RMS : 600 W RMS, 1200 W peak (overall) @ 8Ω. 500 W RMS, 1000 W peak (LF) 100 W RMS, 200 W peak (HF)
- Output Power : 20-20kHz, 1W with 1 khz Frequency Response( 0/-0.3dB,1W/8Ω) : 20 Hz - 34 kHz THD : 20 Hz - 20 kHz for 1 W <0.1%
- Signal-to-Noise Ratio :>112 dBA Channel separation: (Crosstalk) at 1 kHz>70 dB Input Connectors (per channel) : 3-pin XLR, 1/4" phono, electronically balanced.
- Output Connector (Mix Out) : 3-pin XLR, electronically balanced Class : D Operating voltage : 220 V / 110 V nominal 190-240 V / 90-130 V selectable

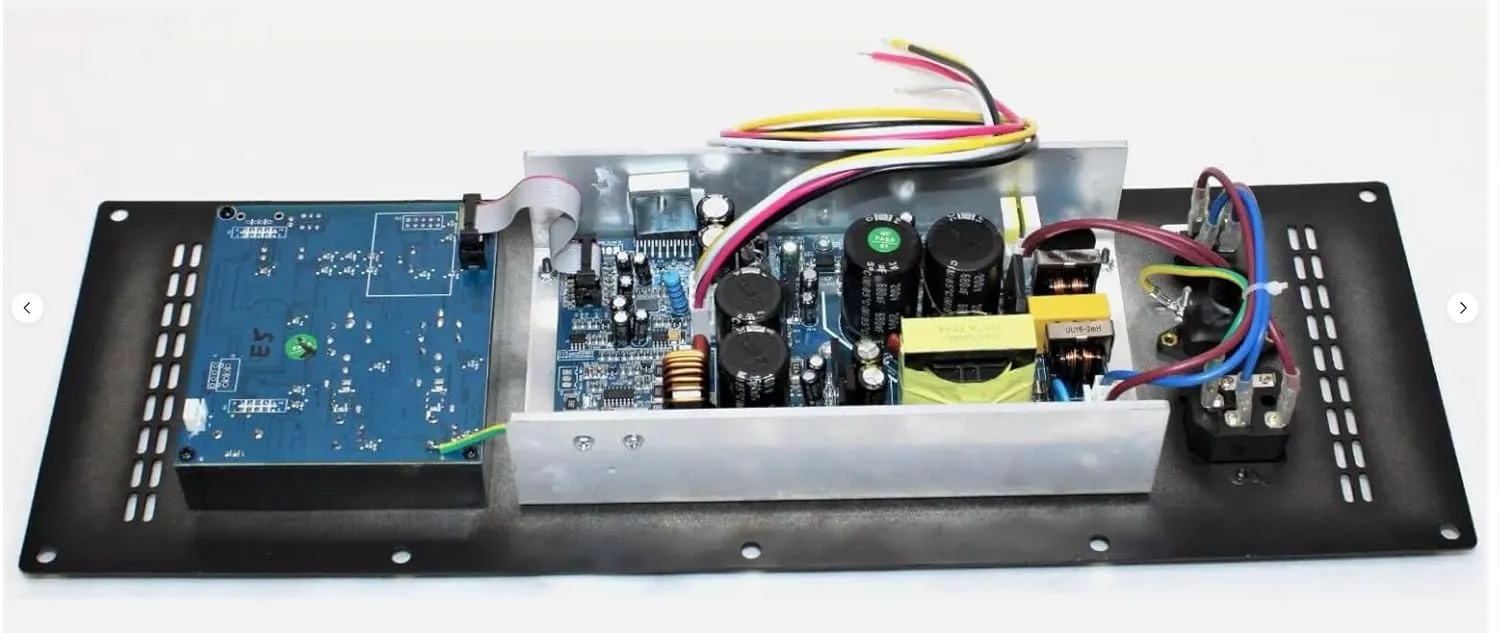

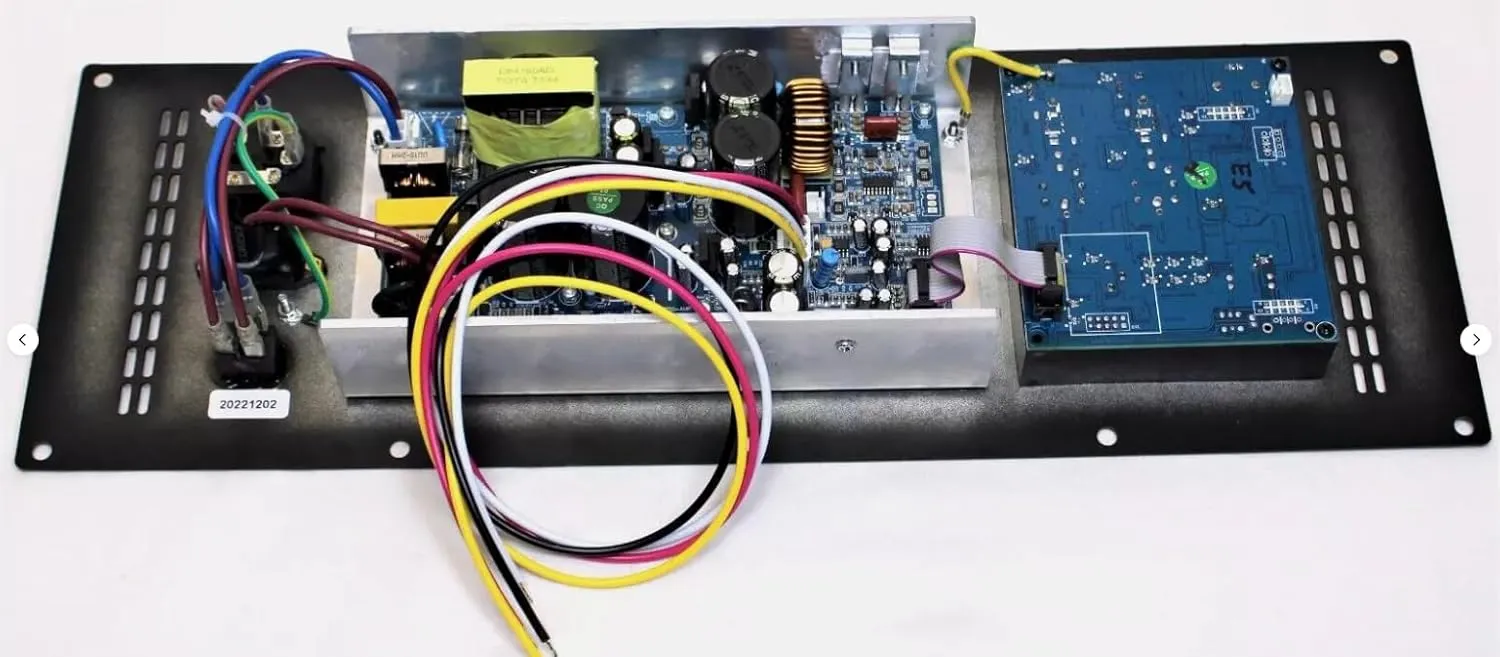

LASE EF500P Bi-Amp Power Amplifier Module (1000Watts Peak) Module for Yorkville EF500P & NX750P-2 Power Module The LASE EF500P Bi-amp Power Module is a high performance switching power amplifier. Completely enclosed for efficient and easy installation, no need for a chamber or a compact (small enclosed space). Completely Enclosed for easy installation. Unprecedented power density,2 channel power amplifier. Reliable sound quality. Class D wiring amplifier. Efficient cooling system,100% pure copper heat sink. XLR input and link connectors. Low-Pass Filter - 80Hz -250Hz 24db/oct. Comprehensive protection and warning.
- Date First Available : January 21, 2025
- Manufacturer : LASE
- Country of Origin : China
